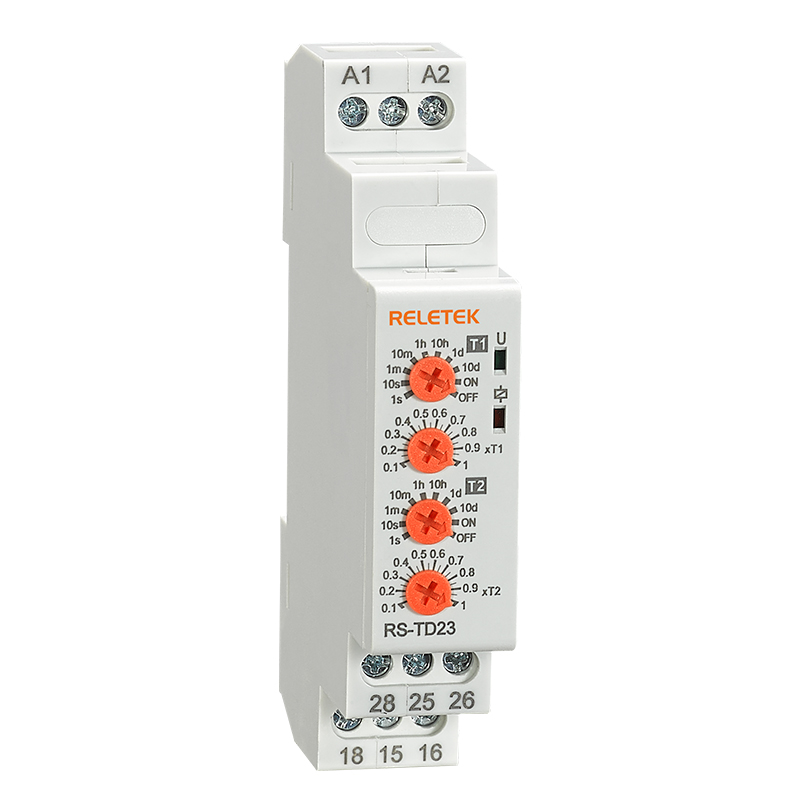

RS-TD23

Microcontroller based
2x delay on
10 time ranges(1s,10s,1m,10m,1h,10h,1d,10d,ON,OFF)
Repetition accuracy<0.2%
T1 and T2 are independently adjustable
LED indication for power supply and relay status
1 Module Din-rail mounting
Send Inquiry Today

Time relays are used to time control of industrial and domestic automatic control systems.

Operation mode: 2xdelay ON

Technical data


Supply terminals

A1,A2

Supply voltage

AC/DC 24-240V

Rated frequency

50/60Hz

Time range

0.1s-10days

Setting accuracy

<5%

Repetition accuracy

<0.2%

Output contacts

2C/0

Current rating

8A/AC1

Contacts capacity

AC-15: 2A

Insulation voltage

250V

Protection degree

IP20

Pollution degree

3

Electrical life

105

Mechanical life

106

Altitude

≤2000m

Ambient temperature

-5~+40

Storage temperature

-10~+50

Wire size

0.5mm2~1 mm2

Torque

0.5Nm

Mounting

TH-35 DIN-Rail


Front-face panel



Time range



Function diagrams



Wiring diagrams
