Time relays are used to time control of industrial and domestic automatic control systems.
Operation mode: three phase star-delta motor control.
Technical data
Models
RS-TS22
RS-TS23
Supply terminals
A1,A2,A3
A1,A2
Supply voltage
A1-A2: AC220V
A3-A2: AC/DC24V
AC/DC 24-240V
Rated frequency
50/60Hz
Time range
t1：0.1s~10m，t2：75ms/150ms
Time setting
Potentiometer
Setting accuracy
<5%
Output contacts
2C/0
Current rating
8A/AC1
Contacts capacity
AC-15: 2A
Insulation voltage
250V
Protection degree
IP20
Pollution degree
3
Electrical life
105
Mechanical life
106
Altitude
≤2000m
Ambient temperature
-5℃~+40℃
Storage temperature
-10℃~+50℃
Wire size
0.5mm2~1 mm2
Torque
0.5Nm
Mounting
TH-35 DIN-Rail

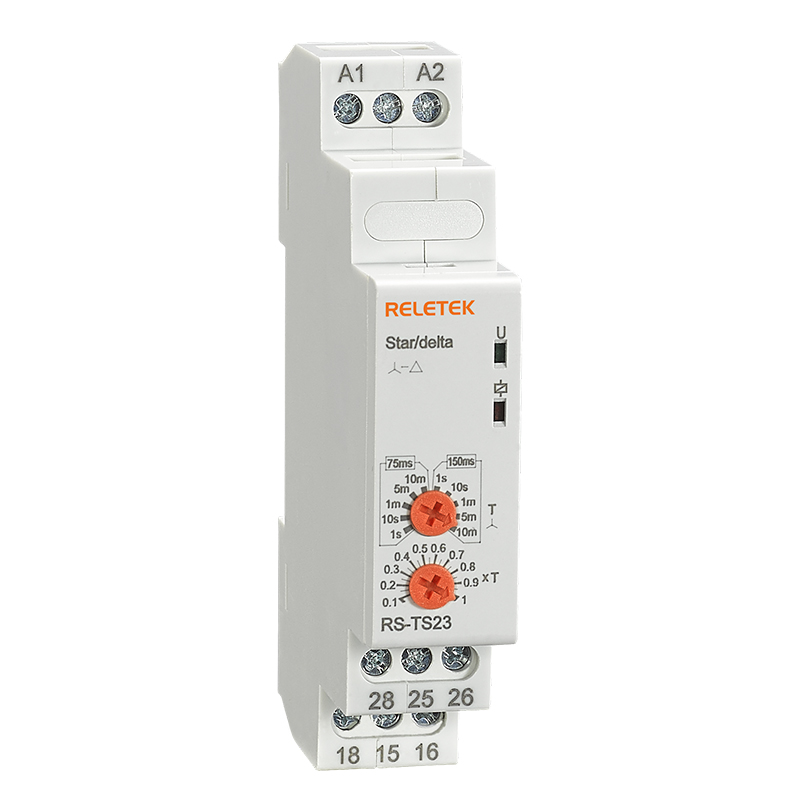

Front-face panel
Time range
Function diagrams
Wiring diagrams
