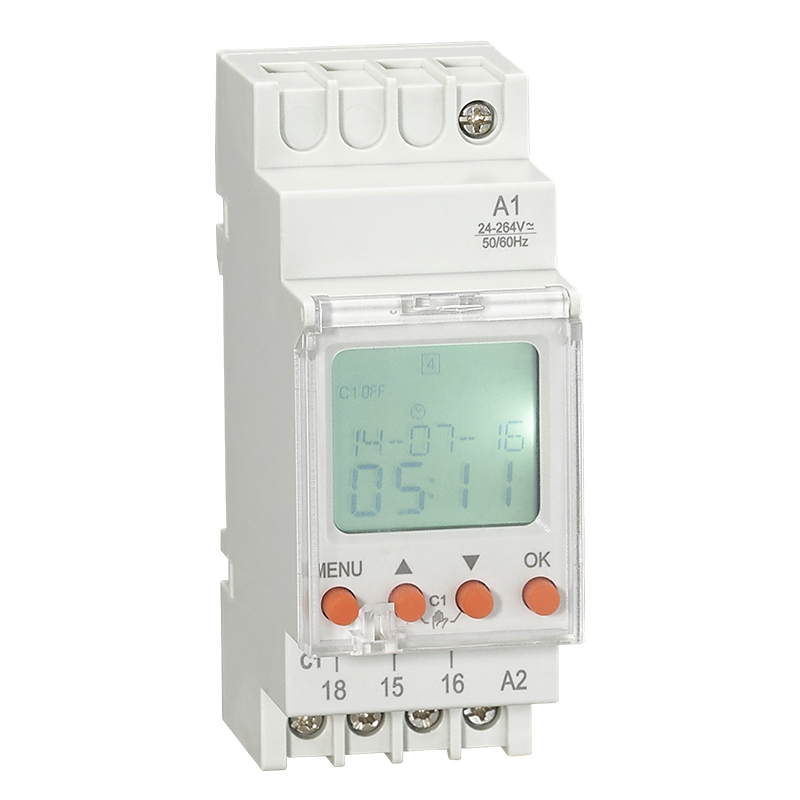

RD-TPM1

Astronomical and annual programs。
3 year 10 year power reserve(lithium battery).
40 programs
Sealable cover of the front panel, easy setting by 4 keys.
Automatic summer/winter time switcheover
Back-lighted LCD display(can be turned off)
Holiday mode.
Random mode
Single channel
Automatic transfer of weekdays
24-264V AC/DC input supply.
2 module Din-rail mounting

Send Inquiry Today

Application Data Sheet Send Inquiry

RD-TPM series multifunction time switch is for realization of time functions in the systems of automatics and steering. It calculates the sunrise and sunset time automatically according to the set geographic position and time zone, without the use of a photocell sensor.
There is an internal battery which can protect real time clock and all the settings when the electric power supply is off.

RD-TPM1 series multifunction time switch is for realization of time
functions in the systems of automatics and steering. It calculates
the sunrise and sunset time automatically according to the set
geographic position and time zone, without the use of a photocell
sensor.
There is an internal battery which can protect real time clock and all

the settings when the electric power supply is off.

Technical data

Supply terminals	A1-A2
Rated voltage	AC220-240V or AC/DC24-264V
Rated frequency	50/60Hz,O
Power consumption	1W
Supply volltage tolerance	±10%
Number of channels	1
Number of programs	40
Program	weekly, annual and astronomical
Mode of work	manual, automatic, holiday, random
Summer /winter time	off, automatic,changeover
Time tolerance	≤1s/day at 20℃
Power reserve	3 year or 10 year
Data readout	LCD display
Number of contacts	1C/0
Current of contacts	16A/250V AC1
Switching capacity	4000VA/AC,384W/DC
Mechanical life	10⁶
Electrical life	10⁵
Rated insulation voltage	250V
Protection degree	IP20
Pollution degree	3
Altitude	≤2000m
Ambient temperature	-20℃~55℃
Permissable relative humidity	≤50% at 40℃（without condensation）
Storage temperature	-30℃~70℃
Wire size	1mm²~4mm²
Tightening torque	0.5Nm
Mounting	TH-35 Rail（EN60715)
Standard	EN/IEC60730-1, EN/IEC60730-2-7

Front-face panel

Wiring diagrams
