RD-TPA2 astronomical time switch is for realization of time
functions in the systems of automatics and steering. It will
calculate the sunrise and sunset according to the geographic
position and time zone. Night break program can be used to turn
off the output at night
There is an internal battery which can protect real time clock and
all the settings when the electric power supply is off.
Technical data
Supply terminals
A1-A2
Rated voltage
AC/DC 24-264V
Rated frequency
50/60Hz,O
Power consumption
2W
Supply volltage tolerance
±10%
Number of channels
2
Program
astronomical
Mode of work
manual, automatic, holiday
Summer /winter time
off, automatic,changeover
Time tolerance
≤1s/day at 20℃
Power reserve
10 year
Data readout
LCD display,with back light
Number of contacts
2C/0
Current of contacts
16A/250V AC1
Switching capacity
4000VA/AC,384W/DC
Mechanical life
106
Electrical life
105
Rated insulation voltage
250V
Protection degree
IP20
Pollution degree
3
Altitude
≤2000m
Ambient temperature
-30℃~55℃
Permissable relative humidity
≤50% at 40℃(without condensation)
Storage temperature
-30℃~70℃
Wire size
1mm2~4mm2
Tightening torque
0.5Nm
Mounting
TH-35 Rail(EN60715)
Standard
EN/IEC60730-1, EN/IEC60730-2-7

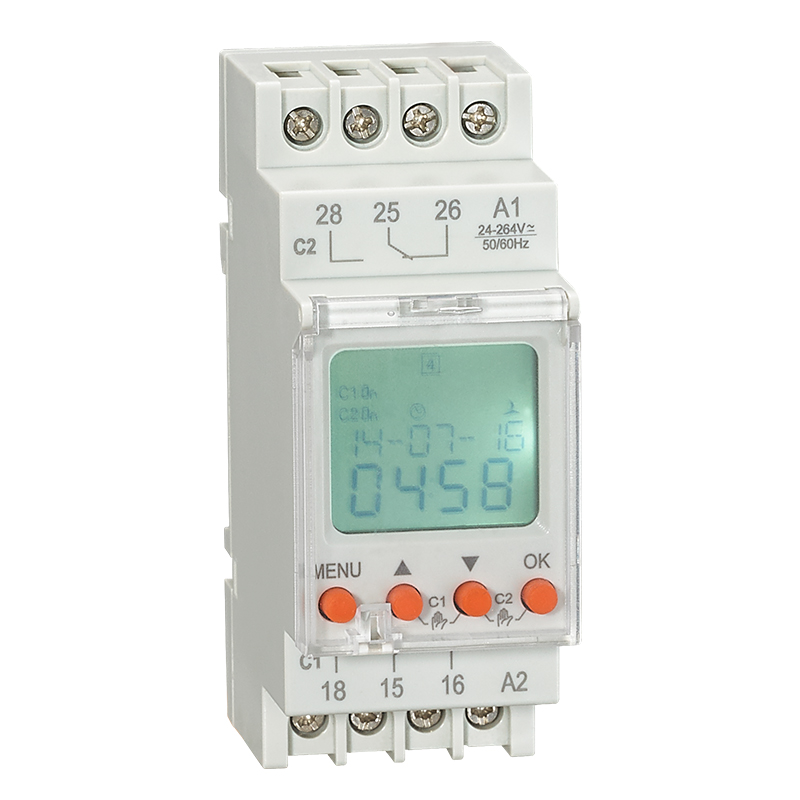

Front-face panel
