RS-TLR12

Microcontroller based
Right-left operation
10 time ranges(1s,10s,1m,10m,1h,10h,1d,10d,30d,100d)
Repetition accuracy<0.2%
LED indication for relay status
1 Module Din-rail mounting
Send Inquiry Today

Time relays are used to time control of industrial and domestic automatic control systems.

Operation mode: left-right activiation

Right-left relay is used for 2 different loads, which works by turn.
First load starts working, stops and waits(off) and second load starts.
working. Both working time is same.
Initially first relay is energized. After Ton delay, relay is de-energized.
Both relays are de-energized during Toff delay. At the end of Toll,
second relay stays in this position during Ton. When Ton finished both
relays are de-energized. This cycle is repeated continuously.


Technical data


Supply voltage

A1-A2: AC220V A3-A2: AC/DC24V

Rated frequency

50/60Hz

Time range

0.1s-100days

Setting accuracy

<5%

Repetition accuracy

<0.2%

Output contacts

2C/0

Current rating

8A/AC1

Contacts capacity

AC-15: 2A

Insulation voltage

250V

Protection degree

IP20

Electrical life

105

Mechanical life

106

Altitude

≤2000m

Ambient temperature

-5~+40

Wire size /Torque

0.5mm2~1 mm2 /0.5Nm

Mounting

TH-35 DIN-Rail

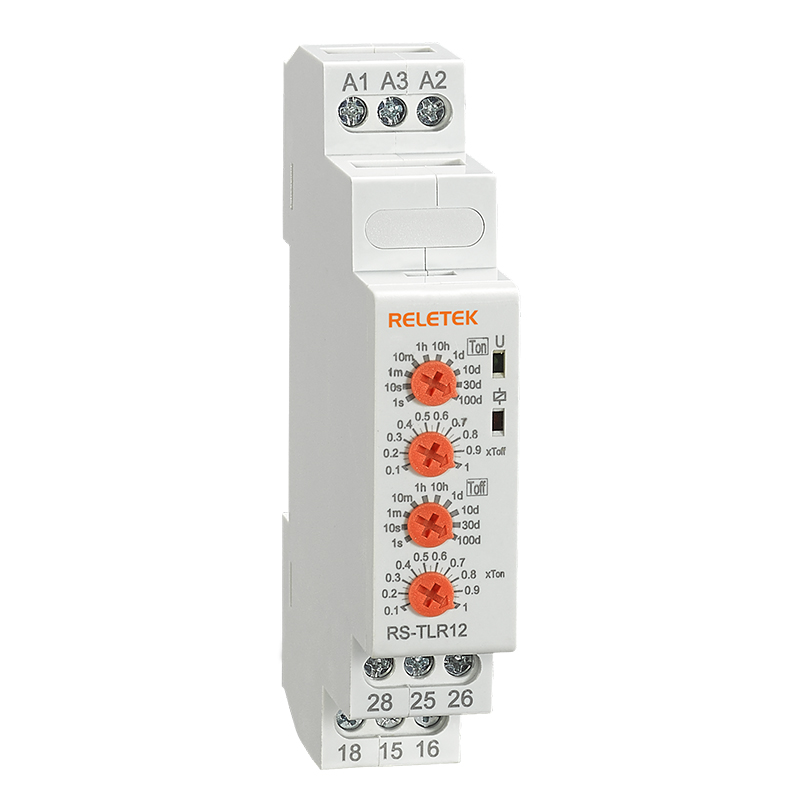

Front-face panel



Time range



Function diagrams



Wiring diagrams
