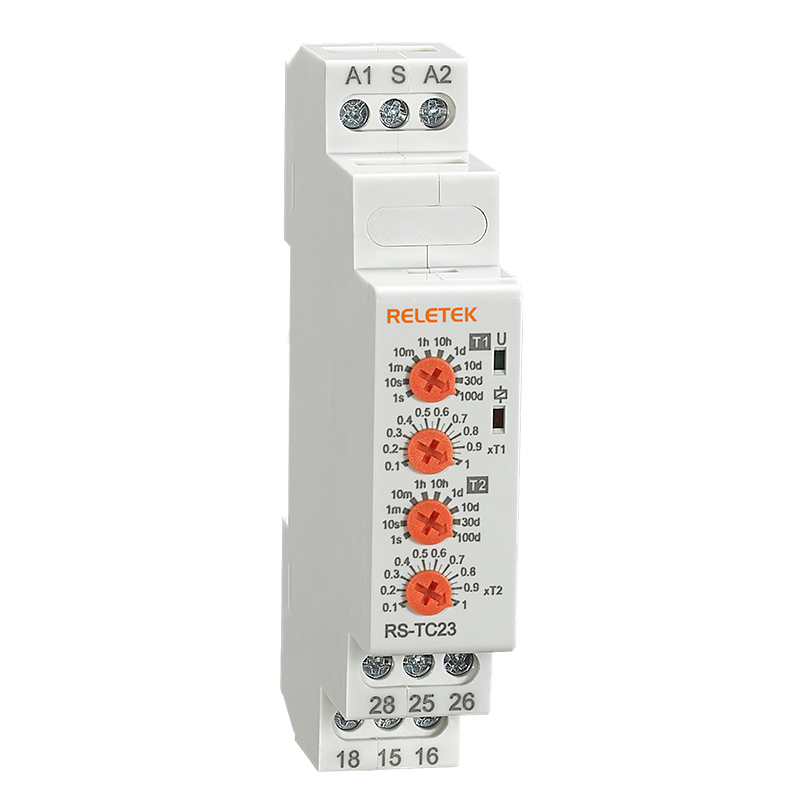

Time relays are used to time control of industrial and domestic automatic control systems.
Operation mode: repeat cycle.
Technical data
Models
RS-TC13
RS-TC23
RS-TC23T
Supply terminals
A1,A2
Supply voltage
AC/DC 24-240V
Rated frequency
50/60Hz
Time range
0.1-100days
Setting accuracy
<5%
Repetition accuracy
<0.2%
Output contacts
1 C/0
2 C/0
1 inst.C/0+1C/0
Current rating
8A /AC1
Contacts capacity
AC-15: 2A
Insulation voltage
250V
Protection degree
IP20
Pollution degree
3
Electrical life
105
Mechanical life
106
Altitude
≤2000m
Ambient temperature
-5℃~+40℃
Storage temperature
-10℃~+50℃
Wire size
0.5mm2~1 mm2
Torque
0.5Nm
Mounting
TH-35 DIN-Rail
Front-face panel
Time range
Function diagrams
Wiring diagrams
