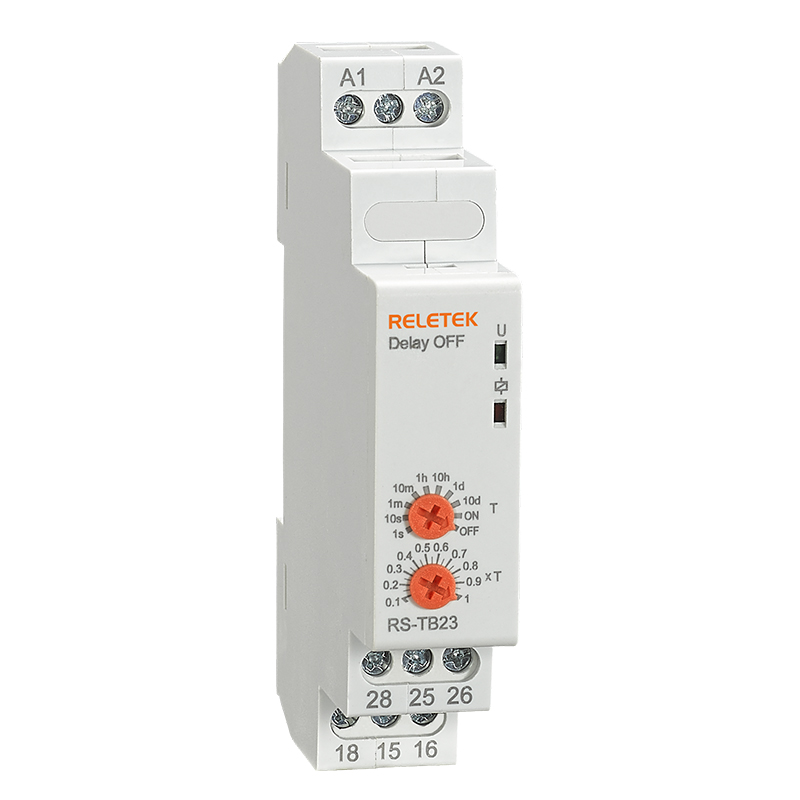

Time relays are used to time control of industrial and domestic automatic control systems.
Operation mode: switch off delay.
Technical data
Models
RS-TB12
RS-TB14
RS-TB23
Supply terminals
A1 A2.A3
A1,A2
Supply voltage
A1-A2: AC220V
A3-A2: AC/DC24V
AC/DC 12-240V
AC/DC 24-240V
Rated frequency
50/60Hz
Time range
0.1 s-10days
Setting accuracy
<5%
Repetition accuracy
<0.2%
Output contacts
1 C/0
2C/0
Current rating
8A /AC1
Contacts capacity
AC-15: 2A
Insulation voltage
250V
Protection degree
IP20
Pollution degree
3
Electrical life
105
Mechanical life
106
Altitude
≤2000m
Ambient temperature
-5℃~+40℃
Storage temperature
-10℃~+50℃
Wire size
0.5mm2~1 mm2
Torque
0.5Nm
Mounting
TH-35 DIN-Rail
Front-face panel
Time range
Function diagrams
Wiring diagrams
