RS-BP31/RS-BP41

Product Show

RS-BP11/RS-BP21

Microcontroller based
Bistable lighting control
Operation with illuminated pushbuttons
Device triggering by either L or N
1 C/O output-10A
LED indication for power supply and relay status
1 Module Din-rail mounting

Send Inquiry Today

Application Data Sheet Send Inquiry

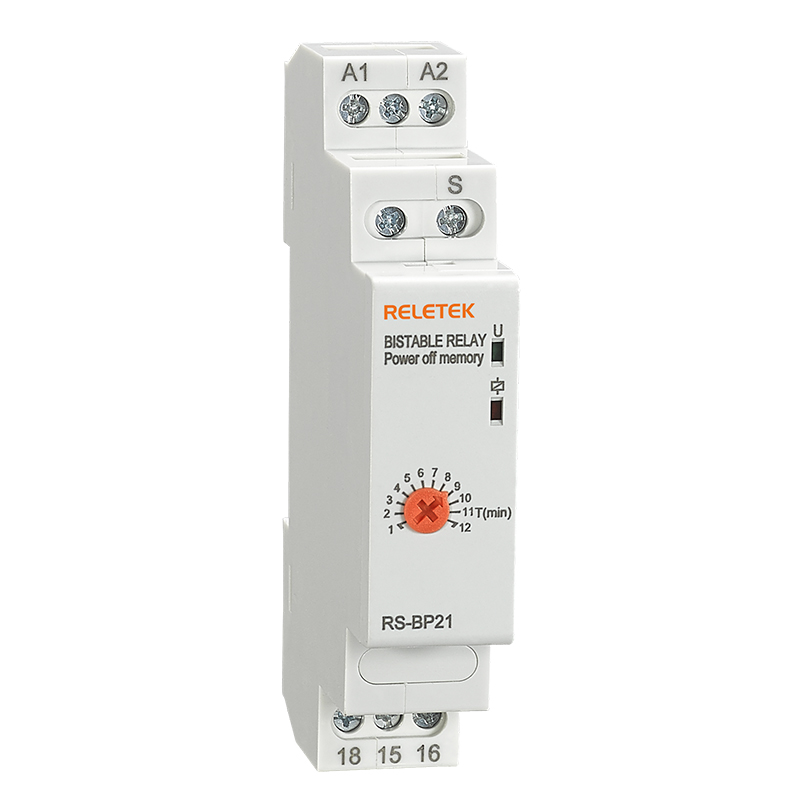

The bistable relay is used to control lighting or other devices by means of pushbuttons connected in a parallel way. Pushing any button causes switching on or switching off the devices connected to output terminals.

Technical data

Models

RS-BP11

RS-BP21

Supply terminals

A1,A2

Pulse terminal

s

Supply voltage

AC 230V

Rated frequency

50/60Hz

Controlling current

<1mA

Power consumption

<D.BW

Output contacts

1 C/0

Time adjustment range

—

1 min~12min

Current rating

10A /AC1

Insulation voltage

250V

Protection degree

IP20

Pollution degree

3

Electrical life

10⁵

Mechanical life

10⁶

Altitude

≤2000m

Ambient temperature

-5℃~+40℃

Storage temperature

-10℃~+50℃

Wire size

0.5mm²~1 mm²

Torque

0.5Nm

Mounting

TH-35 DIN-Rail

Front-face panel

Function diagrams

Wiring diagrams
