RM-PL3 power consumption limiter is used for protecting devices
against overpower, overvoltage and undervoltage faults. It calculates
the power consumption of using device through detecting input voltage
and current values .
The output relay of RM-PL3 will close after Ton delay. When power
consumption detected is higher than P> setting value, the output relay
opens after Toff delay. When an input voltage fault was detected, the
output relay opens. If continuous 5 times such faults. RM-PL3 begin a
10minutes delay and enter output state after the delay is elapsed.
RM-PL3 can be widely applied for power consumption limiting of
heating system, lighting, motor and generator etc .
Technical data
Supply terminals
N,L1,L2,L3
Rated supply voltage
AC 3*50~450V (N-L1/L2/L3)
Rated frequency
50Hz
Pmax setting range
5~50kW
Pmax rough step value
5kW
Pmax fine step value
0.5kW
U> trip value
260V
U> reset value
254V
U> trip delay
0.1s
U< trip value
160V
U< reset value
166V
U< trip delay
5s
Toff delay
1s ~240s
Ton delay
2s ~3600s
Voltage measurement error
≤1%(50~450V)
Current measurement error
≤3%(3~200A)
Current load
＜8A/AC1
Contacts capacity
AC-15: 2A
Output contact
2C/0
Rated insulation voltage
415VAC
Protection degree
IP20
Pollution degree
3
Electrical life
105
Mechanical life
106
Altitude
≤2000m
Ambient temperature
-25℃~+50℃
Permissable relative humidity
≤50% at 40℃（without condensation）
Storage temperature
-25℃~+55℃
Conductor size
0.5mm2~1mm2
Torque
0.5Nm

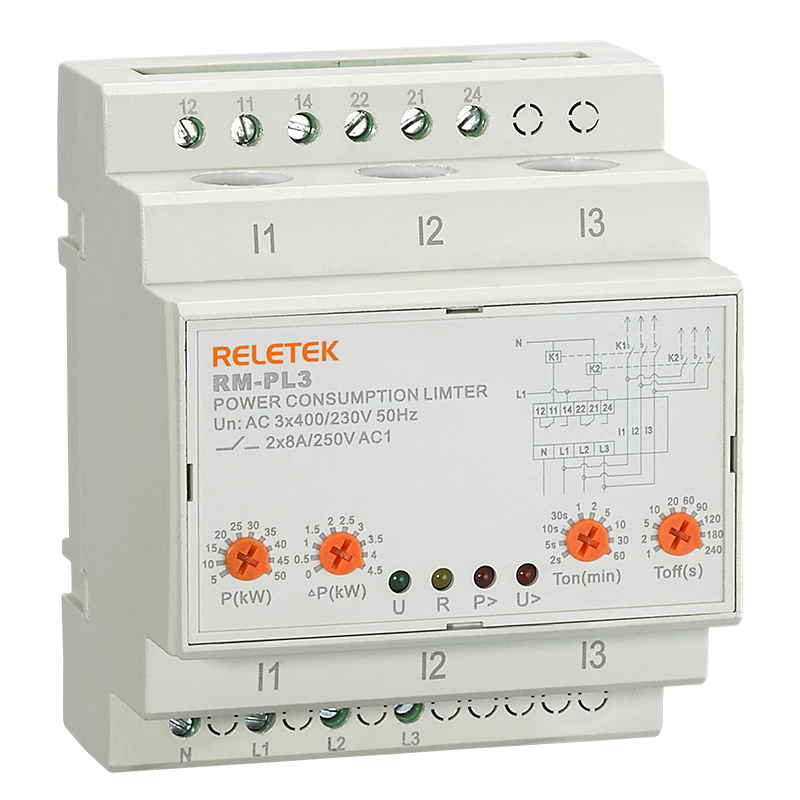

Front-face panel
