RD -TPD2 digital time switch is used for realization of time functions
in the control systems and automation. It operates according to the
set time schedule planned by the user. Pulse program can be used
for school or factory bell ringing.
There is an internal battery which can protect real time clock and all
the settings when the electric power supply is off.
Technical data
Supply terminals
A1-A2
Rated voltage
AC/DC24-264V
Rated frequency
50/60Hz,O
Power consumption
2W
Supply volltage tolerance
±10%
Number of channels
2
Number of programs
90
Programs
weekly, daily and pulse
Operating modes
manual, automatic, holiday
Summer /winter time
off, automatic,changes
Time tolerance
≤1s/day at 25℃
Power reserve
10 year
Data readout
LCD display
Number of contacts
2C/0
Current of contacts
16A/250V AC1
Switching capacity
4000VA/AC1,384W/DC
Mechanical life
106
Electrical life
105
Rated insulation voltage
250V
Protection degree
IP20
Pollution degree
3
Altitude
≤2000m
Ambient temperature
-20℃~55℃
Permissable relative humidity
≤50% at 40℃（without condensation）
Storage temperature
-30℃~70℃
Wire size
1mm2~4mm2
Tightening torque
0.5Nm
Mounting
TH-35 Rail（EN60715)
Standard
EN/IEC60730-1, EN/IEC60730-2-7

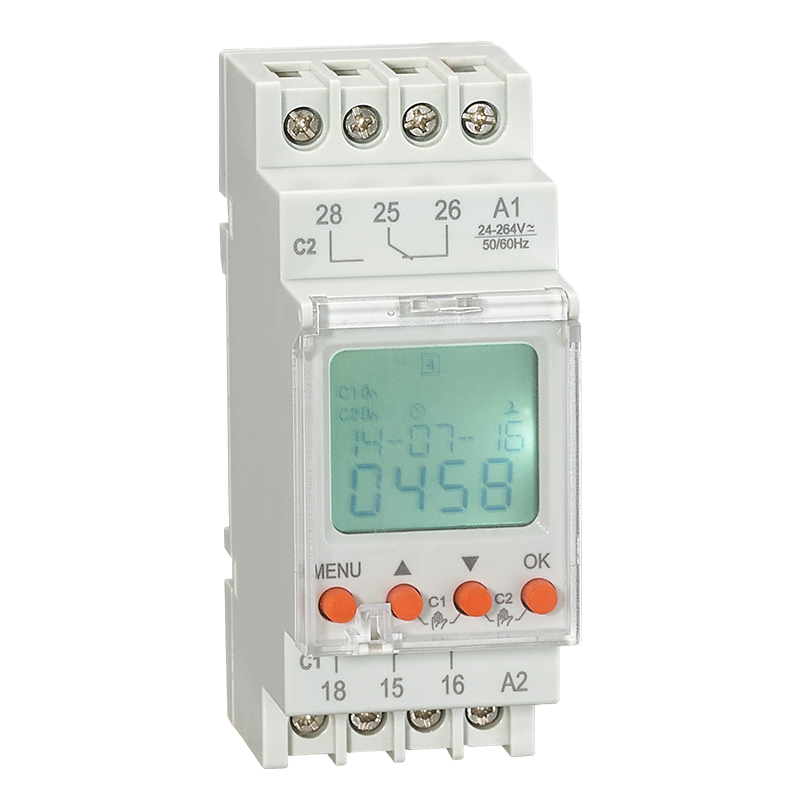

Front-face panel
Wiring diagrams
