RS-LC1/LC2/LC3

HomeProductsPump/liquid level control relaysLiquid level control relay

Product Show

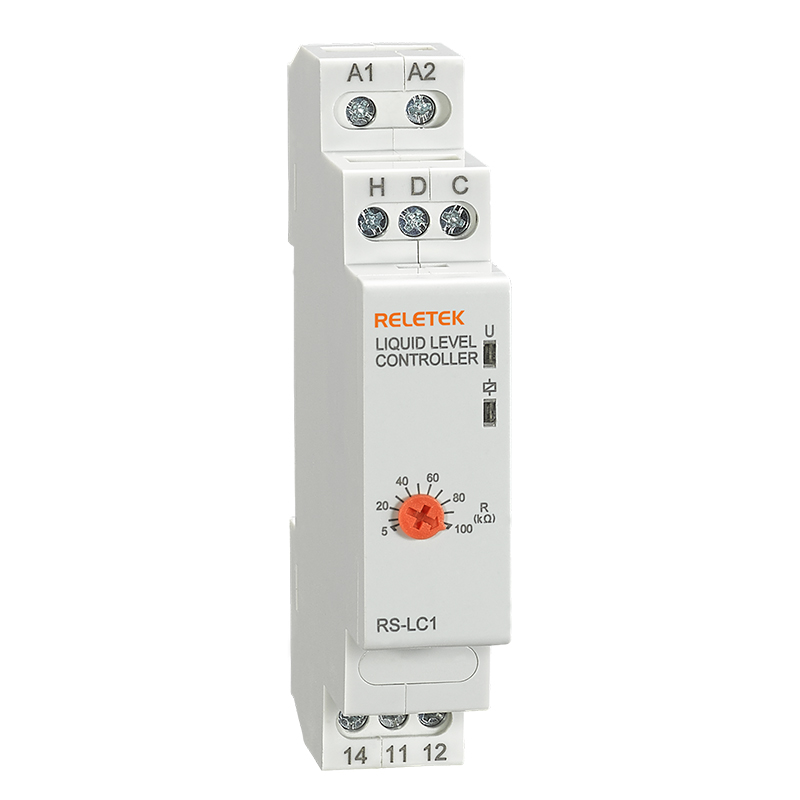

RS-LC1/LC2/LC3

Microcontroller based.
Sensitivity 5kΩ~100kΩ adjustable
1 C/O output-8A
Work with 2 or 3 electrodes mode
24-240VAC/DC
Draining or filling function is selectable
LED indication for supply and output state(RS-LC3)
1 module Din-rail mounting

Send Inquiry Today

Application Data Sheet Send Inquiry

Liquid Level Control Relay is used for controlling liquid levels in wells and liquid tanks at industrial plants or agriculture irrigation.

Technical data

Power supply terminals	A1-A2
Rated supply voltage(Un)	AC/DC 24-240V
Rated frequency	50/60Hz
Power consumption	＜1W
Sensitivity	5kΩ~100kΩ adjustable
Trip delay	RS-LC1: 2s; RS-LC2/LC3: 0.5-10s
Supply indication	Green LED
Output indication	Red LED
Output contact	1C/0
Current rating	8A/250V AC1
Rated insulation voltage	415V
Protection degree	IP20
Pollution degree	3
Electrical life	10⁵
Mechanical life	10⁶
Altitude	≤2000m
Ambient temperature	-25℃~+50℃
Permissable relative humidity	≤50% at 40℃（without condensation）
Storage temperature	-25℃~+75℃
Conductor size	0.5~2.5mm²
Tightening torque	0.5Nm
Mounting	TH35 RAIL（EN60715)

Front-face panel

Function diagrams

Symbol

Wiring diagrams
